Installation dtable-server as a standalone node¶

The next step in building your SeaTable cluster is to move the dtable-server to a separate node.

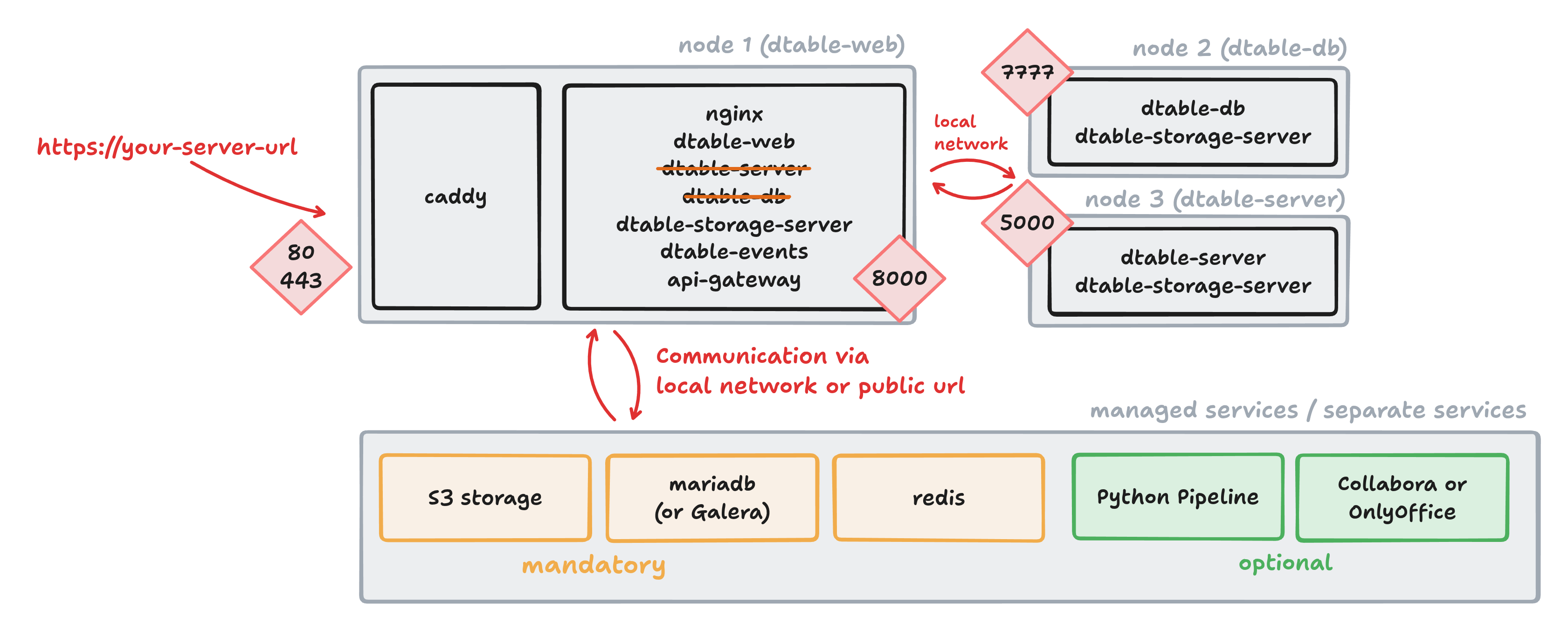

SeaTable Cluster: dtable-server standalone

Setting up a standalone dtable-server¶

Prepare a new node with Docker installed, and copy the following files from one of your existing nodes to the new node:

/opt/seatable-compose/.env
/opt/seatable-compose/seatable-license.txt

Edit the .env file on the new node and ensure the COMPOSE_FILE variable references only a single YAML file:

COMPOSE_FILE='seatable-server-standalone.yml'

Copy seatable-server.yml to seatable-server-standalone.yml and make the following changes to configure it as a standalone dtable-server.

Required changes to `seatable-server-standalone.yml`¶

Apply the following required changes to this file:

Remove all services except seatable-server

The standalone node only requires the seatable-server service. Remove all other services (such as redis, mariadb, or caddy).

Add additional environment variables

Add or update the following environment variables to ensure only the dtable-server is enabled:

environment:
  #... all default environment variables in seatable-server.yml ...
  # this node should only run dtable-server, all other services are disabled
  - ENABLE_DTABLE_DB=false
  - ENABLE_DTABLE_STORAGE_SERVER=true
  - ENABLE_SEAFILE_SERVER=false
  - ENABLE_DTABLE_WEB=false
  - ENABLE_DTABLE_SERVER=true
  - ENABLE_DTABLE_EVENTS=false
  - ENABLE_API_GATEWAY=false
  - SEATABLE_START_MODE=cluster

Expose port 5000

The dtable-server node must be accessible to other nodes. Add the following to the seatable-server service:

ports:
  - 5000:5000

Configure internal network communication

Node-to-node communication uses the internal network. Ensure all nodes can reach each other by adding their names and private IP addresses:

extra_hosts:
  - "dtable-web:10.0.0.2"
  - "dtable-db:10.0.0.3"
  - "dtable-server:10.0.0.4"

Example: `dtable-server-standalone.yml`¶

For reference, here is an example of what your dtable-server-standalone.yml might look like. Do not copy and paste directly — adapt to your environment as needed.

---
services:
  seatable-server:
    image: ${SEATABLE_IMAGE:-seatable/seatable-enterprise:x.x.x}
    restart: unless-stopped
    container_name: seatable-server
    volumes:
      - "/opt/seatable-server:/shared"
      - type: bind
        source: "./seatable-license.txt"
        target: "/shared/seatable/seatable-license.txt"
        read_only: ${SEATABLE_LICENSE_FORCE_READ_ONLY:-false}
    environment:
      ...
      ...
      # this node should only run dtable-server
      - ENABLE_DTABLE_DB=false
      - ENABLE_DTABLE_STORAGE_SERVER=true
      - ENABLE_SEAFILE_SERVER=false
      - ENABLE_DTABLE_WEB=false
      - ENABLE_DTABLE_SERVER=true
      - ENABLE_DTABLE_EVENTS=false
      - ENABLE_API_GATEWAY=false
      - SEATABLE_START_MODE=cluster
    ports:
      - 5000:5000
    extra_hosts:
      - "dtable-web:10.0.0.2"
      - "dtable-db:10.0.0.3"
      - "dtable-server:10.0.0.4"
    networks:
      - frontend-net
networks:
  frontend-net:
    name: frontend-net

Now, start dtable-db for the first time and monitor the logs:

docker compose up -d

Changes after first start¶

After the first start of dtable-server, make the following changes to the newly created configuration files:

Add S3 configuration

Add the S3 configuration to conf/dtable-storage-server.conf, analogous to your first or second node.

Additional configuration changes

Open conf/dtable_server_config.json and add these entries:

{
    "dtable_db_service_url": "http://dtable-db:7777",
    "dtable_web_service_url": "http://dtable-web:8000"
}

Now it is time to restart dtable-server and verify that the service is running, port 5000 is exposed and a pong is returned:

curl 127.0.0.1:5000/ping/

Configure dtable-web to use the standalone dtable-server¶

Now that dtable-server is running on a separate node, update dtable-web to use this node instead of the internal component.

Disable dtable-server in dtable-web

Open /opt/seatable-compose/dtable-web.yml and make these changes:

environment:
  - ENABLE_DTABLE_SERVER=false
extra_hosts:
  - "dtable-web:10.0.0.2"
  - "dtable-db:10.0.0.3"
  - "dtable-server:10.0.0.4"
ports:
  - "8000:8000"

Update API-Gateway

Open the configuration file conf/dtable-api-gateway.conf and add these lines to specify the location of dtable-server:

[dtable-server]
server_address = "http://dtable-server:5000"

Update dtable_web_settings.py

Open /conf/dtable_web_settings.py and add:

INNER_DTABLE_SERVER_URL = 'http://dtable-server:5000/'

Additional changes on dtable-db¶

Specify the location of dtable-server in dtable-db as well.

Update dtable-db.conf

Find the relevant section and update the value:

[dtable cache]
dtable_server_url = "http://dtable-server:5000"

Restart SeaTable on all three nodes¶

docker compose up -d

Verify complete setup¶

Open any base in your web browser and check that logs are being created on the dtable-server node.

Congratulations! You are now running a separate dtable-server and have completed the next step in building your SeaTable cluster.
